EUROTEK SPIRAL FREEZER

EUROTEK SPIRAL FREEZER

Contact us for price

Doncaster, United Kingdom

orCall +44 (0) 7802 211568

Description

  • Spiral freezer model : 26 (2.2) 36-145
  • Belt width 660mm - Usable belt width 610mm

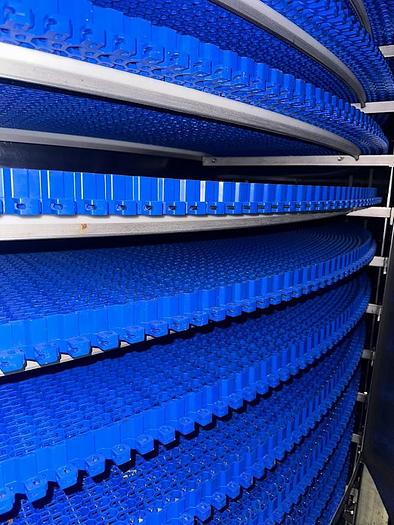

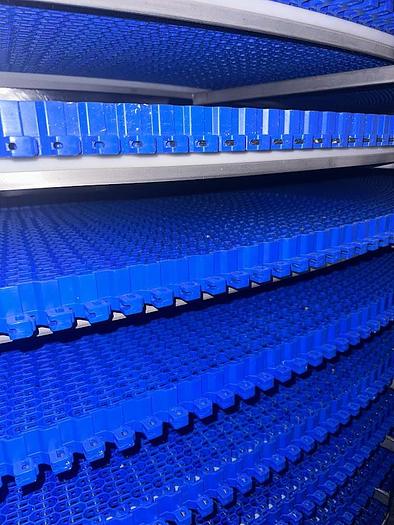

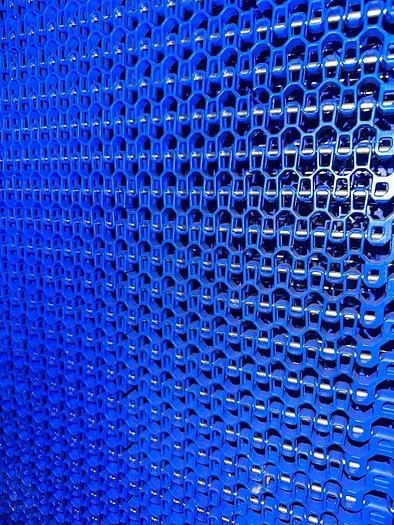

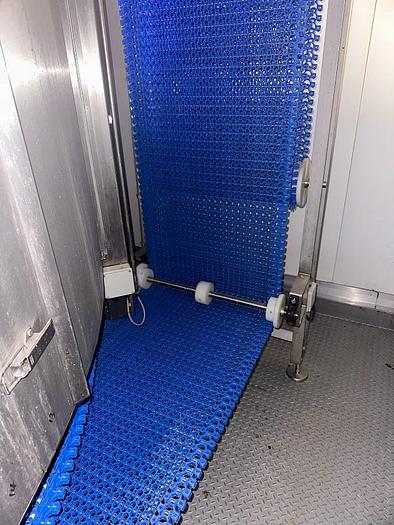

  • Belt type : Ashworth Advantage 120 Acetal with 25mm side flights

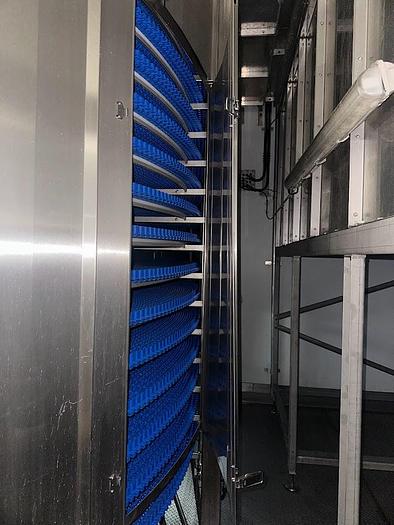

  • Number of tiers : 36
  • Tier pitch 145mm - Max product height 75mm
  • Belt length per tier : 13.28m
  • Effective belt length : 478.08m
  • Effective belt area : 245.95m²

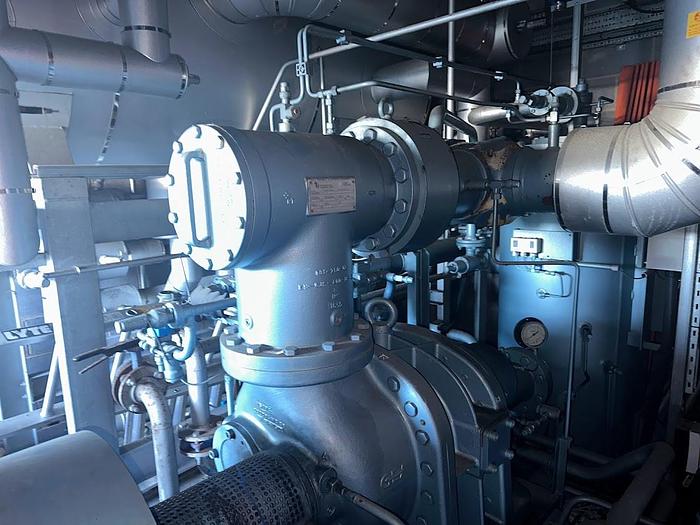

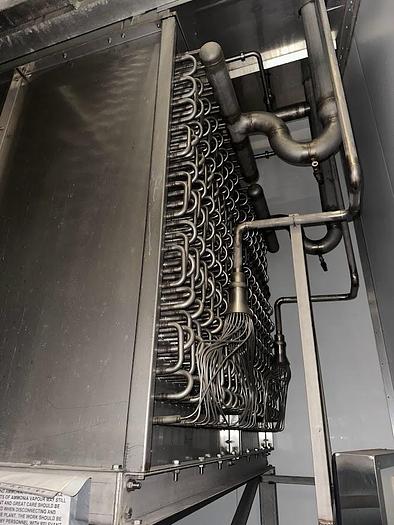

  • Refrigeration duty : 200KW

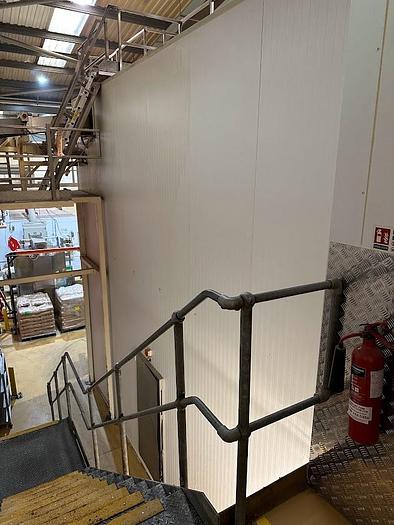

  • Approx dims 7650mm x 5700mm x 6700mm high
Show All

Specifications

ManufacturerEUROTEK
Model26 (2.2) 36-145
ConditionVery good used
